Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic

Name: Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic
Brand: wangtebei
Price: 1 USD

Deformation Of Compression Set Rubber Testing Instruments For Vulcanized Or Thermoplastic Manufactures

Brand Name : wangtebei

Model Number : A type B type

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 5-8 working days

Packaging Details : export package

Type A : Diameter 29mm Height 12.5mm

Type B : Diameter 13mm Height 6.3mm

Dimensions : diameter 115mm high about 110mm

weight : 3.5kg

Contact Now

deformation of compression set for rubber, vulcanized or thermoplastic

Overview

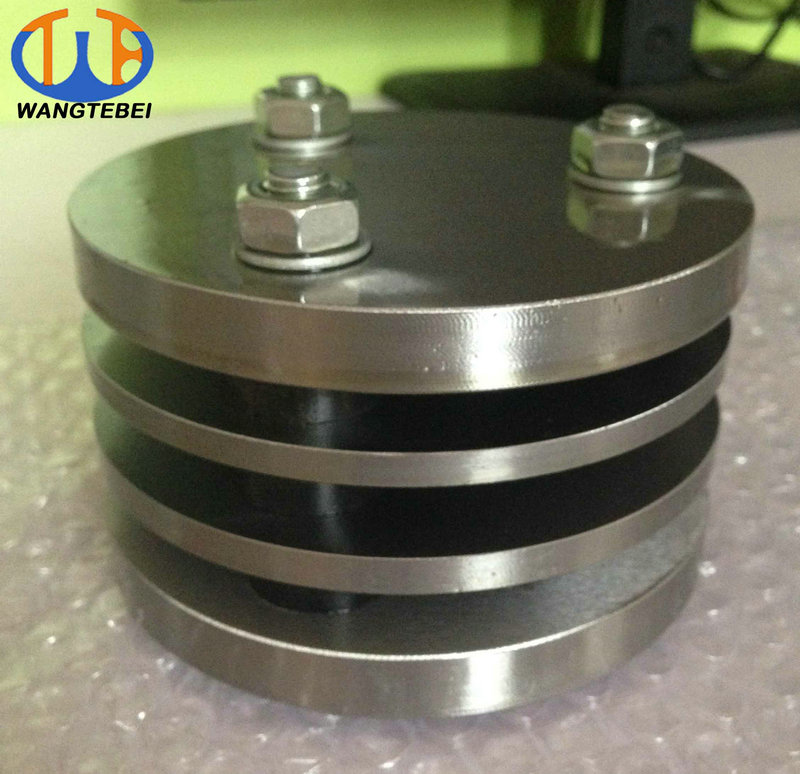

The rubber compression permanent deformation device is composed of parallel steel plate limiter and fasteners, meets the requirements of GB7759 and ISO815, and is used for vulcanized rubber. The thermoplastic rubber is tested at a certain compression rate under normal temperature, high temperature and low temperature conditions, after a certain compression time. The amount of deformation.

Features and uses
The tester consists of parallel steel plates, limiters and fasteners. It meets the requirements of GB7759, ISO815 and other related standards. It is used for vulcanized rubber, thermoplastic rubber or foam under normal temperature, high temperature and low temperature conditions, with a certain compression ratio and a certain compression time. After that, the amount of rubber deformation was measured.

Technical parameters:
1. Sample: Type A: Diameter 29mm Height 12.5mm
Type B: Diameter 13mm Height 6.3mm
2, limiter height:

Sample type	A	B
When the compression ratio is 25%, mm	9.3 ~ 9.4	4.7 ~ 4.8
When the compression ratio is 15%, mm	10.6 ~ 10.7	5.3 ~ 5.4
When the compression ratio is 10%, mm	11.25 ~ 11.3	5.65 ~ 5.7

3, Dimensions: diameter 115mm high about 110mm
4, weight: 3.5kg
