EZ-10 Digital 3-10mm Diameter Wire Torsion And Reverse Torsion Testing Machine

Name: EZ10 Digital 310mm Diameter Wire Torsion And Reverse Torsion Testing Machine
Brand: wangtebei
Price: 1 USD

EZ-10 Digital 3-10mm Diameter Wire Torsion And Reverse Torsion Testing Machine Manufactures

Brand Name : wangtebei

Model Number : EZ-10

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 5-8 working days

Packaging Details : export package

Wire diameter : 0.1-10mm

Max. distance between the two chucks : 500mm

Rotating speed : 30 r/s,60r/s

Counting resolution : 360°/r

Hardness of chucks : HRC55-65

Weight : About 500kg

Contact Now

1. Main function & application

It is designed to make torsion test for metallic wire and can be used to measure the capacity of plastic deformation and display surface and interior defects during unidirectional and bi-directional torsion test. And it provides reliable measuring instrument method for wire manufacture and end-user units.

2.Features:

Its axial loading adopts lever weight loading, with precision better than 1%;
Composed of controller, motor, rotation chuck;
Rotation speed can be set by controller, on which number of turns can be displayed;
Adopting high precision moving rail to ensure the centering of two chucks.
With movable and transparent safe shield to ensure that operator can operate and observe test process

3. relative test mthod

ISO 9649 Metallic materials—Wire—Reverse torsion test

ISO 7800 Metallic materials—Wire—Simple torsion test

4. Technical Specifications

No.	Item	Parameters
1	Wire diameter	Ф0.1～Ф10
2	Axiality of the two chucks	＜Ф0.1mm/1000mm
3	Straightness of moving guide rail	＜0.2mm/1000mm
4	Max. distance between the two chucks	500mm
5	Rotating speed	30 r/s,60r/s
6	Counting resolution	360°/r
7	Calculation mode	automatic
8	Hardness of chucks	HRC55-65
9	Griping mode	manual
10	Power supply (should have reliable protective measures)	220VAC, 50Hz
11	Dimension(LWH)	19005601150
12	Weight	About 500kg

Product Tags:

tensile strength testing machine

horizontal tensile tester

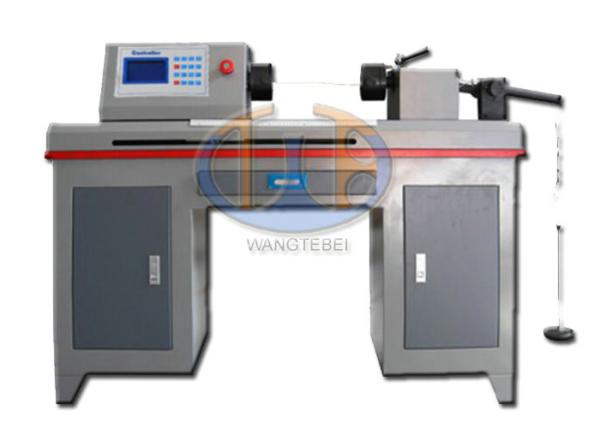

EZ-10 Digital 3-10mm Diameter Wire Torsion And Reverse Torsion Testing Machine Images
