Steel Corrosion Meter Ndt Inspection Equipment With 1MV Test Accuracy

Brand Name : GTJ

Model Number : GTJ-XSY

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 5-8 work days

Packaging Details : export package

Potential electrode : Size: Φ30mm × 120mm

Power supply mode : Built-in lithium battery

Potential measurement range : ±1000mV

Test accuracy : 1mV

Measuring point spacing : 1 ~ 100cm

Data storage capacity : 5400 survey areas / 228000 points data

Contact Now

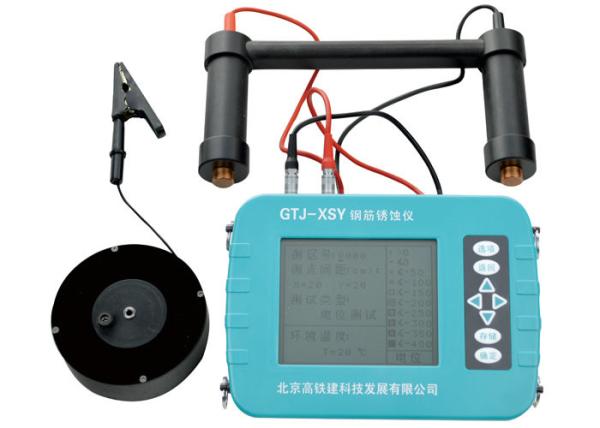

GTJ-XSY steel corrosion meter

Usage overview
The corrosion of the steel bars in the structural concrete causes the effective cross-sectional area of the steel bars to decrease and the volume to increase, which leads to the expansion and spalling of the concrete, the reduction of the holding force and the bearing capacity of the steel and concrete, and directly affects the safety and durability of the concrete structure.Therefore, the detection of the degree of corrosion of steel bars inside concrete structures is an important part of the safety assessment and identification of existing building structures.

Applicable standard
JGJ/T152-2008 "Technical Regulations for Reinforcement Testing in Concrete"

Features
※ New upgrade, adopting three-proof shell design, waterproof, dustproof and shockproof.
※ GTJ-XSY steel corrosion tester uses the principle of polarized electrode to measure the surface potential of concrete by copper/copper sulfate reference electrode. According to the potential of steel bar corrosion or the potential gradient formed, it is judged whether the steel bar is rusted and rusted.
※ Measure the surface potential of the concrete to achieve the non-destructive detection of the degree of corrosion of the steel in the concrete.
※ Store the potential value corresponding to each measurement area and display it in a graphic form, and transfer the data to the PC software and operate it.

Technical Parameters

Potential electrode	Size: Φ30mm × 120mm Weight: 100g
Host parameters	Waterproof level: IP65 Screen size: 5 inches Volume: 195 × 140 × 45mm Weight: 0.8kg
Power supply mode	Built-in lithium battery
Potential measurement range	±1000mV
Test accuracy	1mV
Measuring point spacing	1 ~ 100cm
Data storage capacity	5400 survey areas / 228000 points data
Working environment temperature	-10 ° C ~ 40 ° C
Packing specification	Material: engineering plastic Volume: 420 × 140 × 335mm Weight: 5.5kg
